Concrete Jersey Barrier

For rapid solutions to safety and access issues, a Wade Concrete Jersey Wall Barrier system is a fast, secure, and flexible response to any situation.

Use concrete jersey barriers to provide protection from vehicle traffic, to segregate pedestrians from plant, or enhance perimeter security.

Size Matters

The concrete jersey barrier weight and dimensions are designed to ensure transportability while maintaining security. Without a forklift, these beasts aren’t going anywhere once delivered and in position.

Concrete Barrier Key Features

• Self install with forklift
• 2500mm length

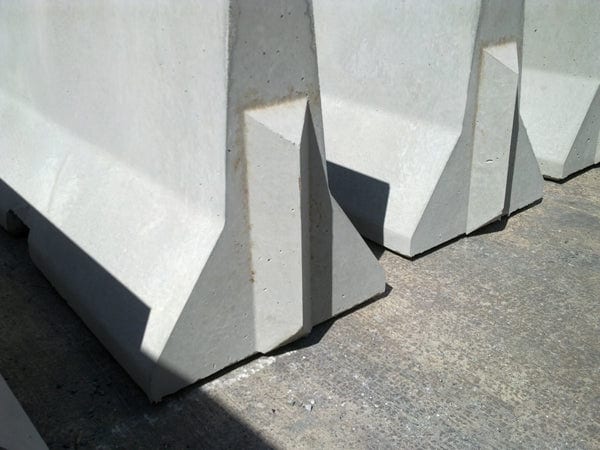

• Interlocking
• 1450kg weight

Concrete Jersey Barrier Dimensions

Weighing in at 1450 kg these concrete wall barriers have forklift-compatible lifting grooves designed to make setting and manoeuvring simple.

Wider at the base, these barriers are almost impossible to topple and can protect vehicles from excess damage, impacting tyres first.

The concrete road barriers are 2.5m long and interconnect, each holding the next barrier securely.

Ready To Go

The 50 N/mm2 high-density concrete mix that forms these jersey barriers makes them robust, long-lasting, and ready for any paint finish.

Take them straight off the lorry and put them in position for an instant vehicle-proof, secure site boundary.

As a project's requirements change, the barriers can be moved to respond to new situations.

Prime Protection

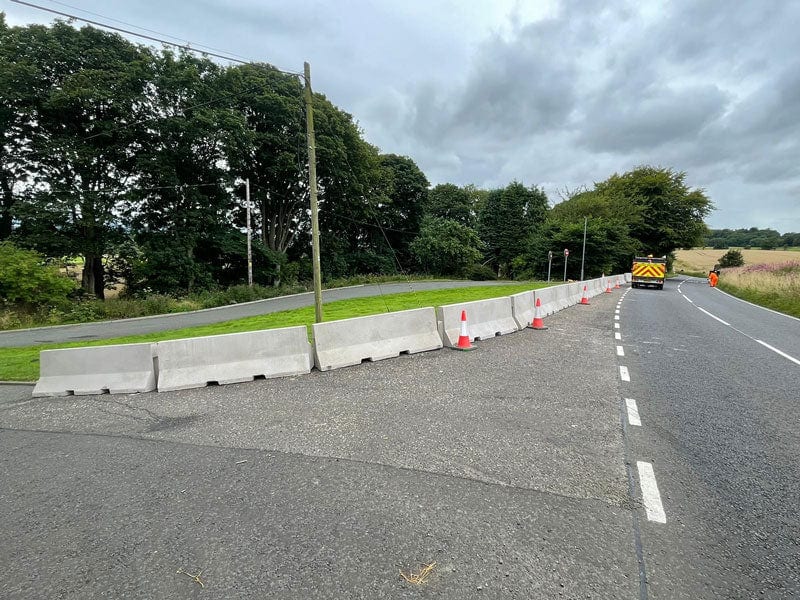

Jersey barriers are tested to extremes and can safely withstand a vehicle impact at up to 50mph. This makes them ideal for public-facing construction sites, Section 278 works, or traffic management on large infrastructure projects.

Concrete jersey wall barriers are also an excellent means of flood defence. They can be deployed quickly in the case of Met Office flood alerts in areas that would otherwise require significant construction work to provide permanent flood barriers.

Use a series of barriers to block vulnerable areas on a property, bund low-lying areas, or divert floodwater away from residential or industrial centres. This sort of prime concrete protection will not float away and add to the flood hazard.

All Projects Great and Small

One concrete jersey barrier can block unwanted vehicle access to a single-lane gateway. As a deterrent to casual parking, or to stop vehicles from using a pedestrian route, a solitary jersey barrier can be very effective.

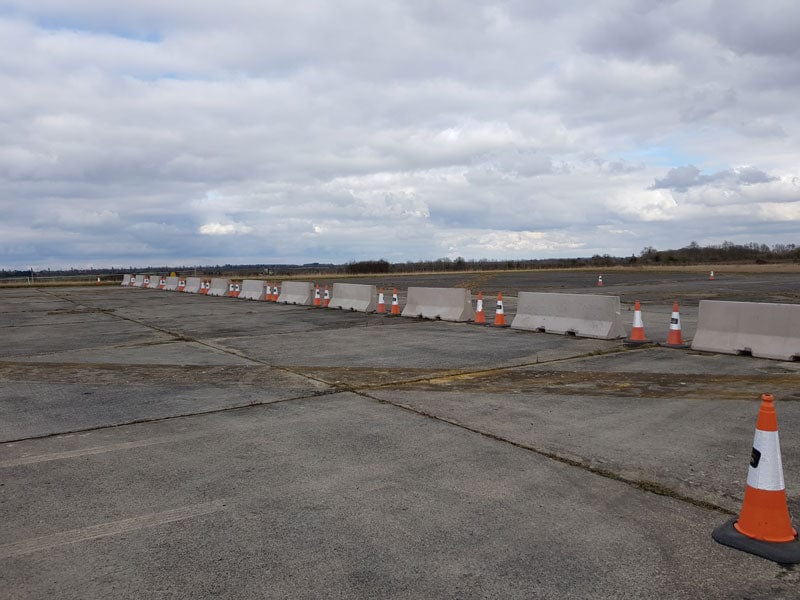

At the same time, jersey barriers can set out temporary or permanent roadways through any facility or construction site.

Contact our professional team today to learn how our range of traffic management solutions can benefit your project.
