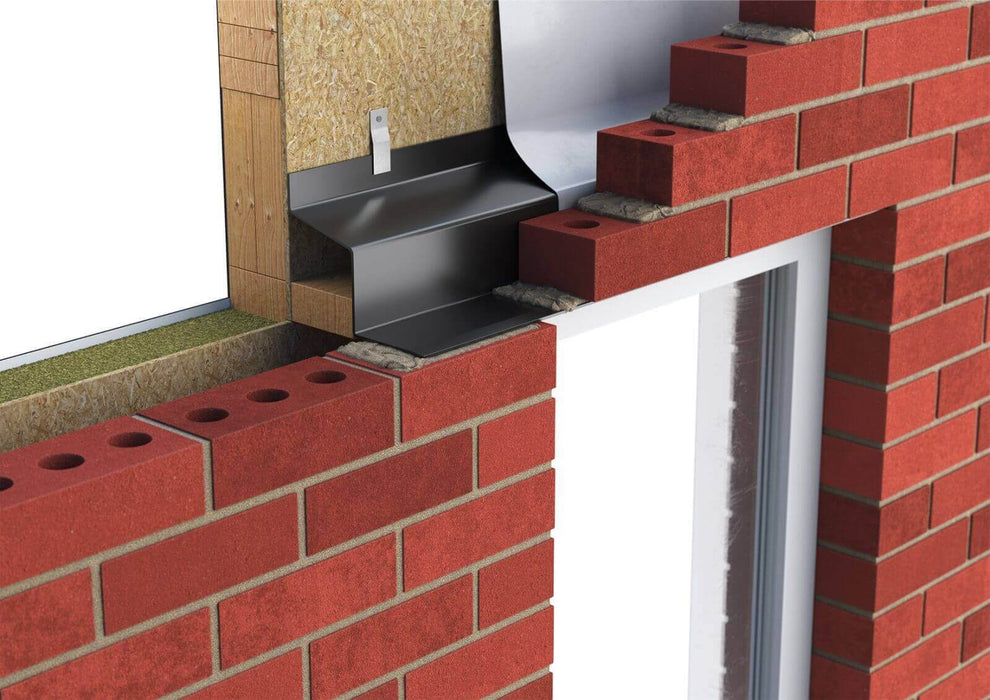

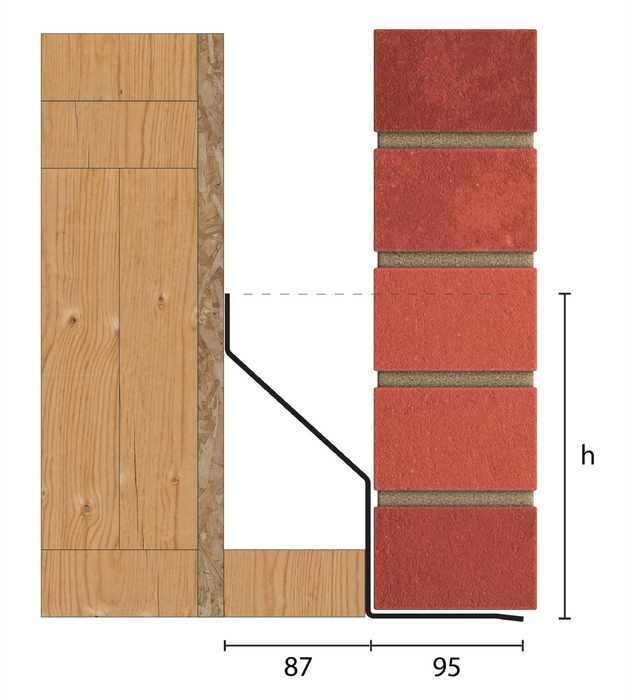

Catnic 90mm Cavity Timber Framed Lintel CTF9

Catnic CTF9 Timber Frame Lintels include Catnic Duplex Corrosion Protection.

To avoid Twist During Installation use the Provided Restraining Clips

Catnic Lintels provide a Damp Proof Course by using a Sloping Outer Face and Corrosion Protection.

Restraint Clips should be Screwed or Nailed to the Timber Frame.

It is Recommended a Batten be used, and the Lintel is suitably Propped.

For Installation Help or any Questions link to Lintel Technical Support

Catnic Timber Frame Lintels Key Features

• Standard Duty
• Built in DPC
• Catnic Duplex Corrosion Protection
• 90 - 105mm Cavity
• 102mm Outer Leaf
• Restraint Clips
• Download Catnic CTF9 Timber Frame Lintel Datasheet
